Volumetric Filler SA (250ml)
KSE-SA250-2H

Introducing –

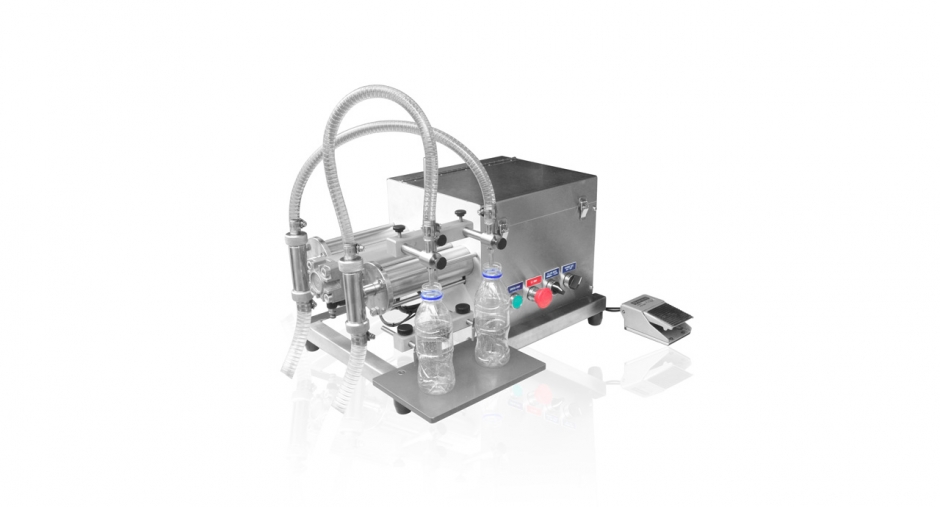

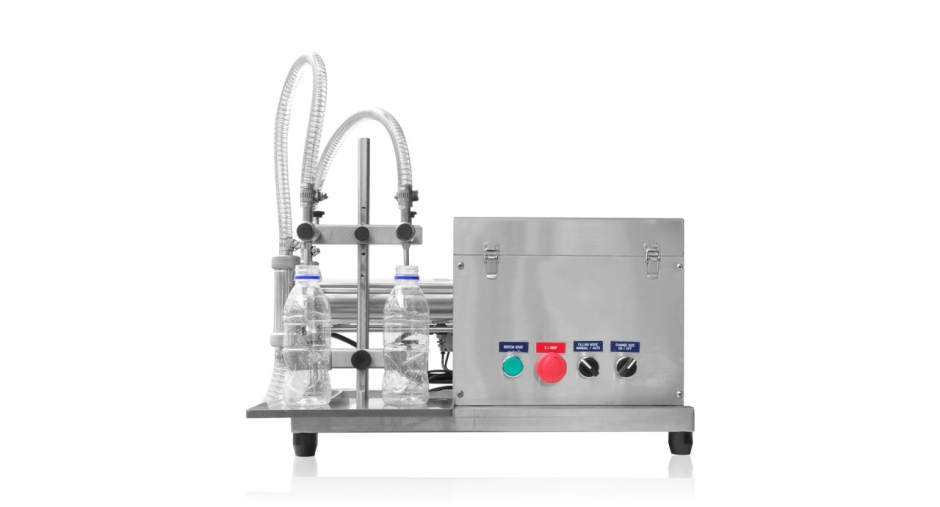

Volumetric Filler SA (Double head)

Volumetric filling machine SA range is suitable for low viscosity products like water, essential oils, and more.

Description

Volumetric filling machine, as the name suggests, is to perform filling by volume.

The SA range is different from the PSA range. The SA range volumetric filling machines are designed to handle low viscosity liquids like water, essential oils, and more.

The KSE-SA250-2H is a double filling nozzle head model, there is also the single head model available here.

It works in theory as a syringe would; the product is sucked into the chamber via a drawback action of the piston until the chamber is filled or the desired volume is drawn. Then it is pushed out via the piston in the opposite direction. Hence what volume drawn is the same volume dispensed.

Different filling volumes can be easily adjusted by changing volume sticks. Volume sticks of different length can be tailored in accordance to the client’s requirement, for example, 100ml, 500ml and 1000ml.

A variety of nozzle tips are available for the diverse range of products out there in the market. Customisable options are available.

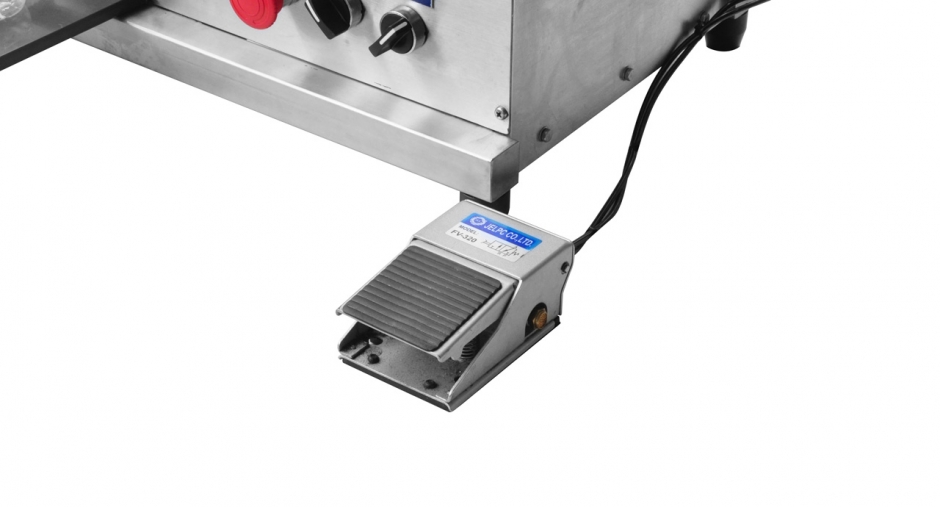

The Volumetric Filler has manual or automatic filling mode for the convenience of the operator. An optional foot pedal control is also available at the request of the client.

How it works

Full Video

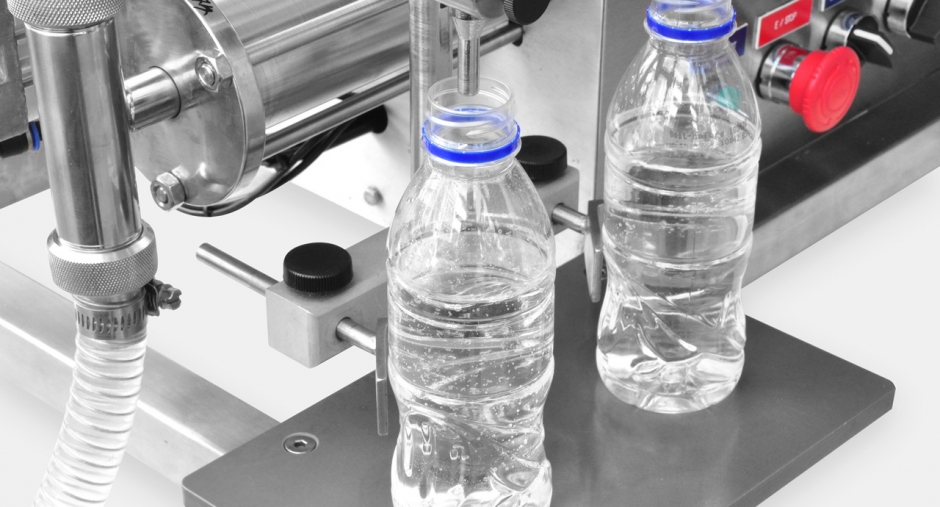

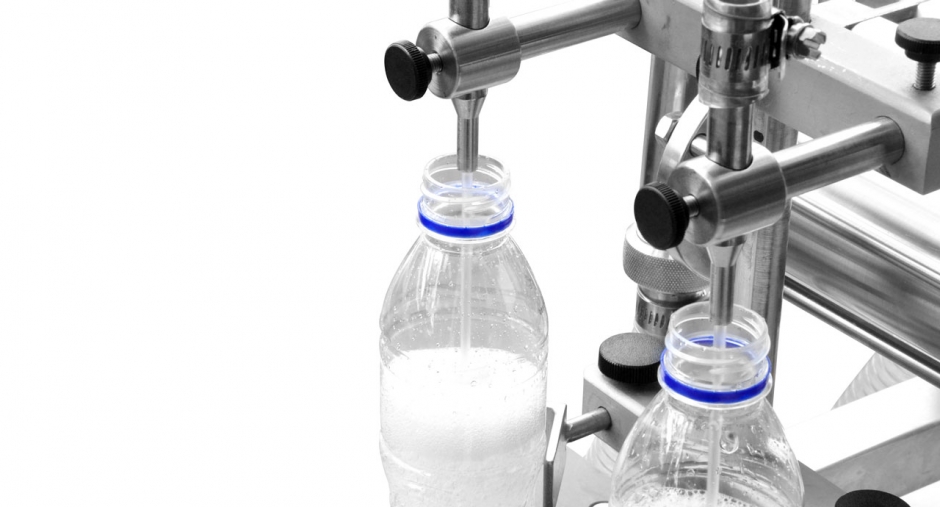

The Volumetric Filler SA is a volumetric filling machine that is simple and easy to operate. The supply end of the hose is inserted into a container holding the product to be filled, the other end is connected to the filling nozzle.

A press of the start button or foot pedal will activate the filling process. Once the process is completed in manual mode, it will stop automatically. If it is in automatic mode, the process repeats itself with an interval of 3 seconds or so.

Volumetric Filler SA - KSE-SA250-2H

Features

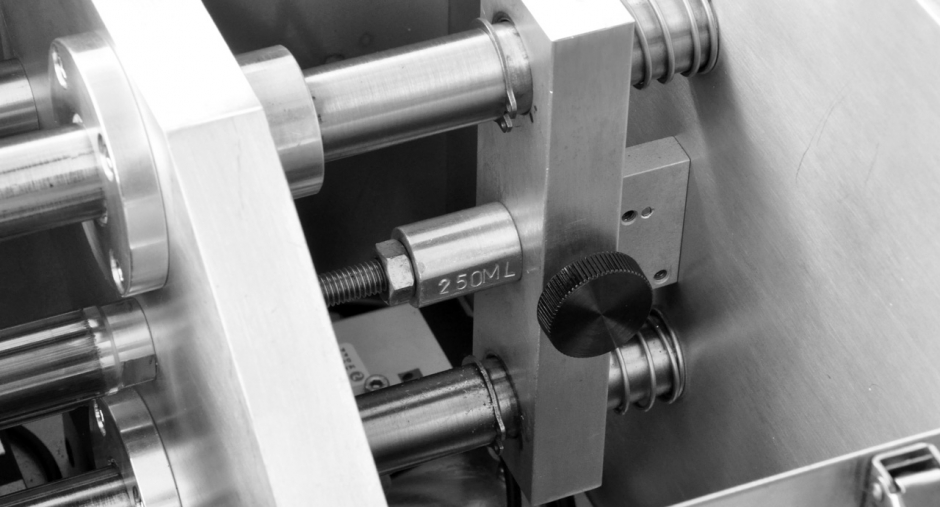

Interchangeable dispensing volume

Volume sticks of different length can be changed to control the amount dispensed. Clients will provide us information on the desired volume and we will customise the volume sticks in accordance.

Variety of nozzle tips

We have many nozzle tip designs for the various products out there. As different products will require different tips to prevent drip after filling, or allow better and faster product flow, and more.

We have able to cater to

  • No. of filling head – 1 or 2 filling head
  • Filling volume (customisable)

Suitable for

  • Low viscosity product
  • Water
  • Essential oils
  • Beverages
  • And more…

Technical Specifications

Filling volume25 to 250ml
Filling temperature25 to 100 °C
No. of filling nozzle1 or 2 (customisable)
Nozzle diameterdependant on client’s request
No. of volume sticksdependant on client’s request
Filling speed6 x 250ml bottles/min (low speed)
Hopper capacity16 liters (default, customisable)
Compressed air6 bar (min), constant supply
Materials for machineStainless steel 304 and 316
Weight20kg approx~
Dimension (L x W x H)550mm x 510mm x 460mm
