Volumetric Filler PSA (2000)
KSE-PSA2000H

Still filling your product using hands?

Try our Volumetric Filler PSA today.

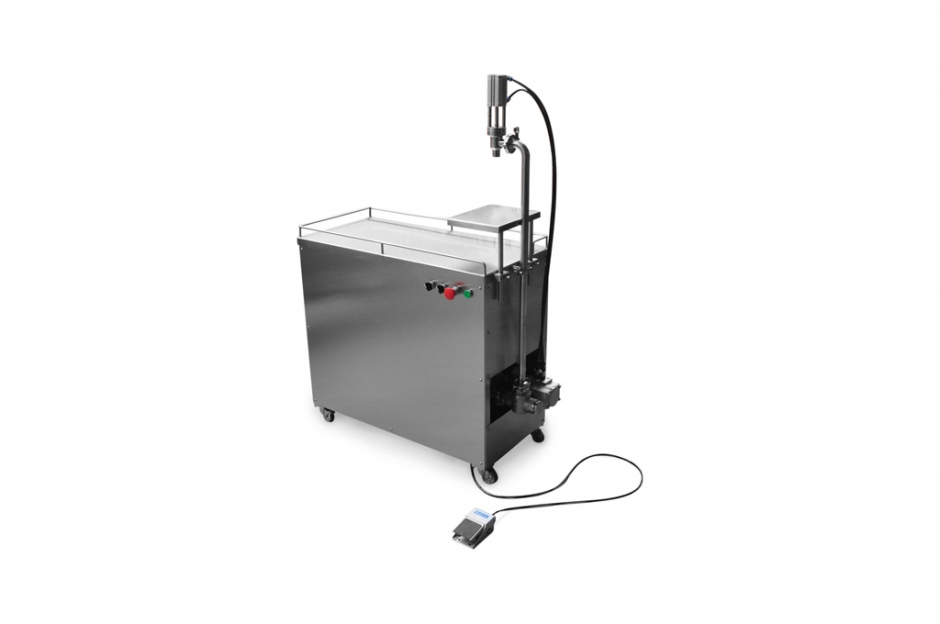

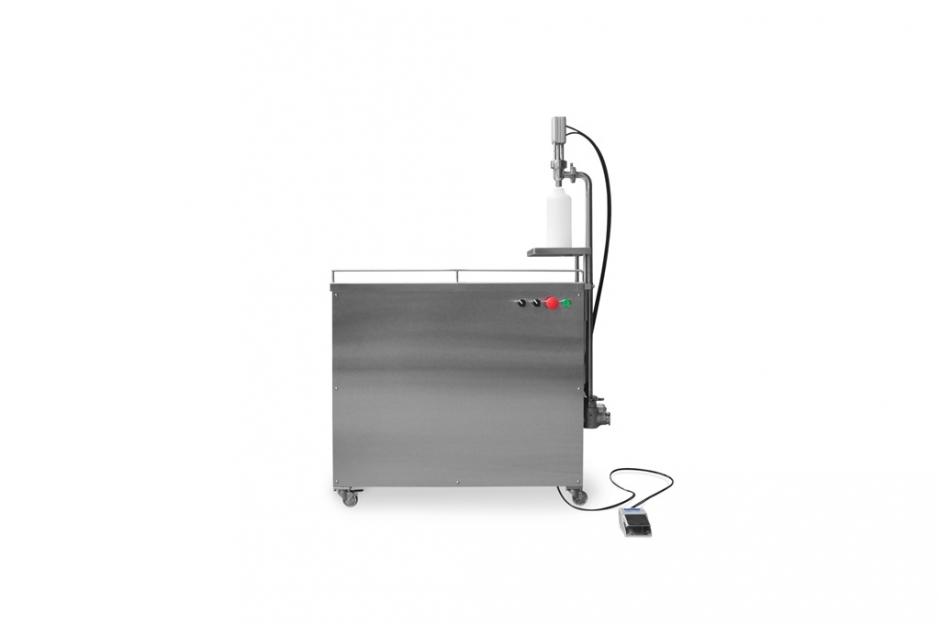

Volumetric Filler PSA is pneumatically operated, volumetric filling machine suitable for medium to high viscosity product.

Description

Volumetric Filler, as the name suggests, is to perform filling by volume.

It works in theory the same as a syringe would; the product is sucked into the chamber via a drawback action of the piston until the chamber is filled or the desired volume is drawn. Then it is pushed out via the piston is the opposite direction. Hence what volume drawn is the same volume dispensed.

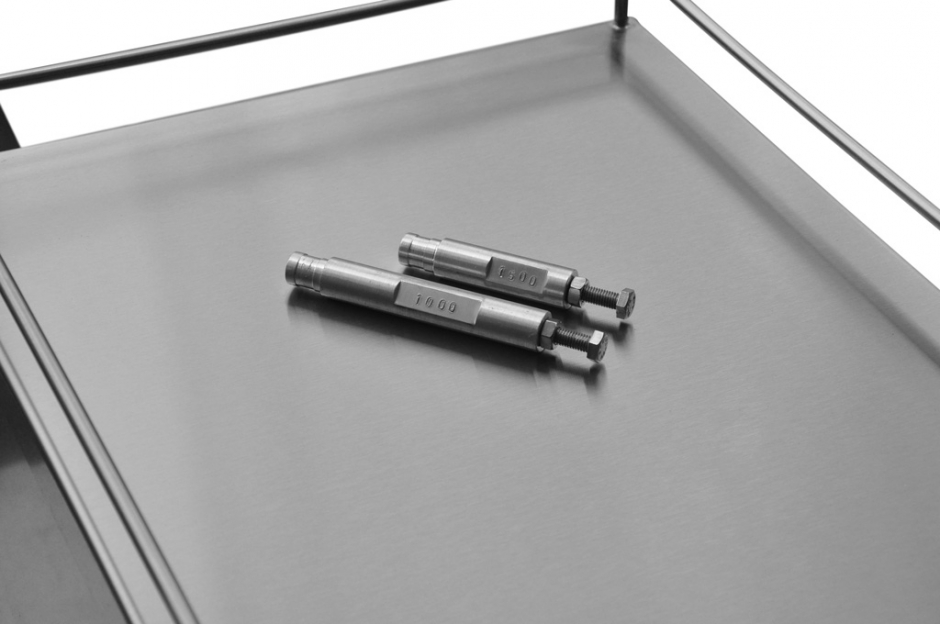

Different filling volume can be easily adjusted by changing volume sticks. Volume sticks of different length can be tailored in accordance to the client’s requirement, for example, 200ml, 1000ml and 2000ml.

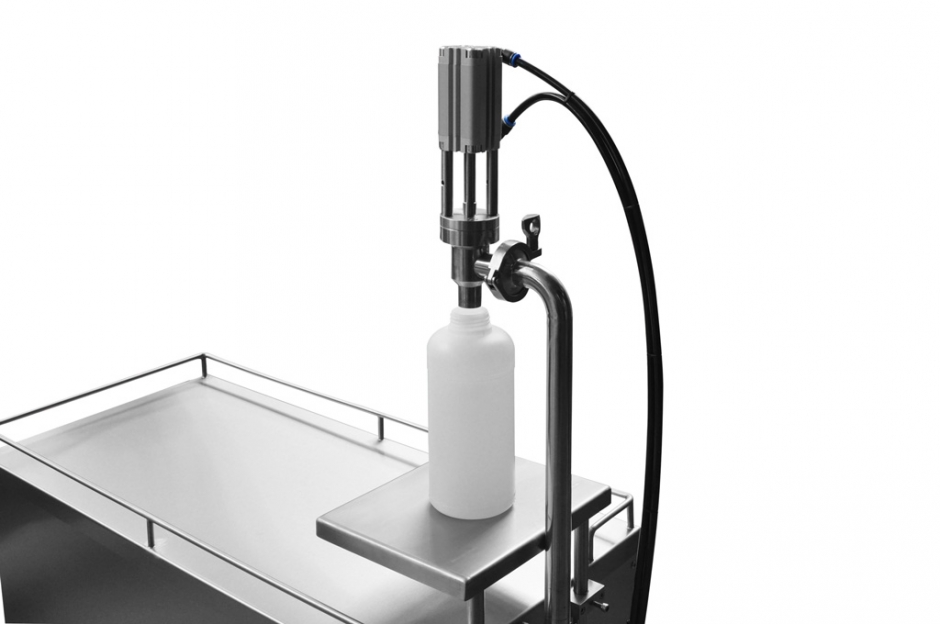

A variety of nozzle tips are available for a diverse range of products out there in the market. Customisable options are available.

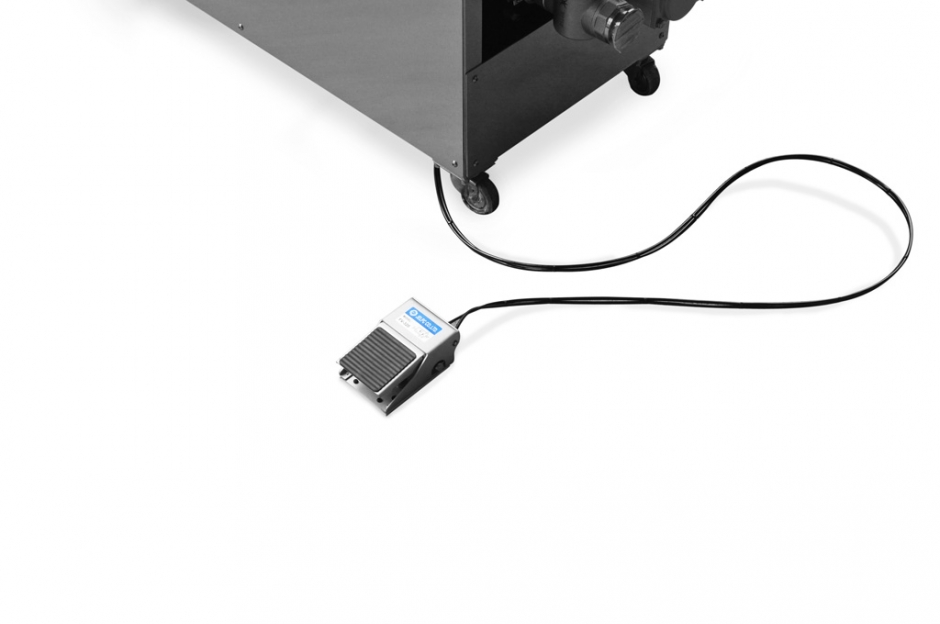

The Volumetric Filler has manual or automatic filling mode for the convenience of the operator. An optional foot pedal control is also available at the request of the client.

How it works

Features

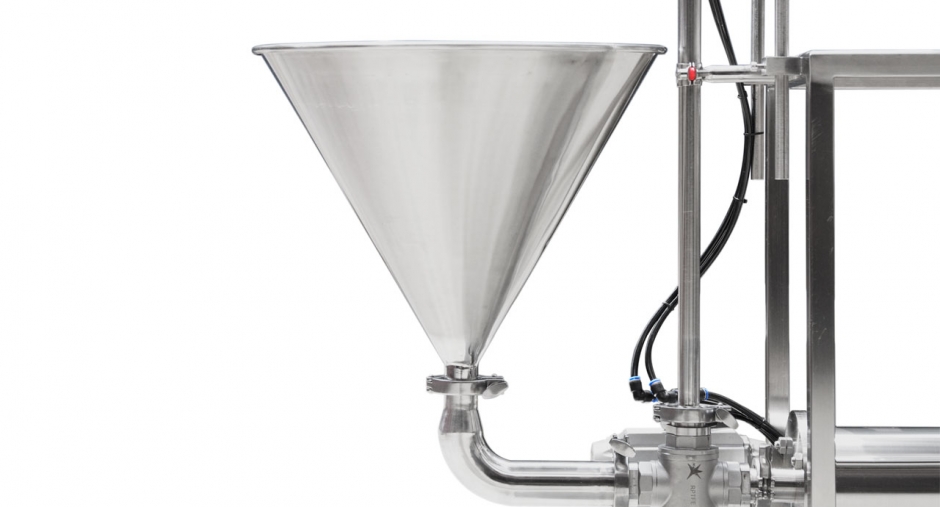

Option to use larger hopper tank

PSA 2000ml model allows external hopper tank to connect with it, allowing continuous filling without stopping to top up the hopper.

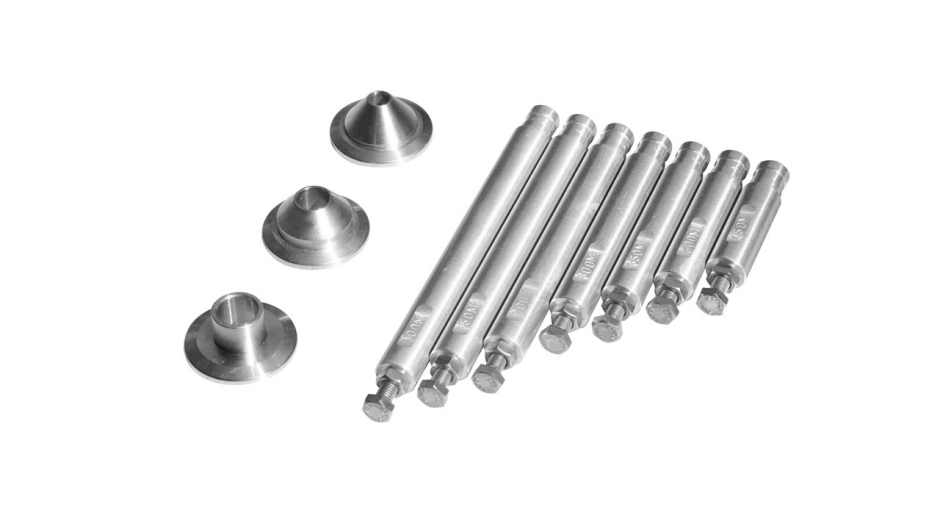

Range of volume control and nozzle tips

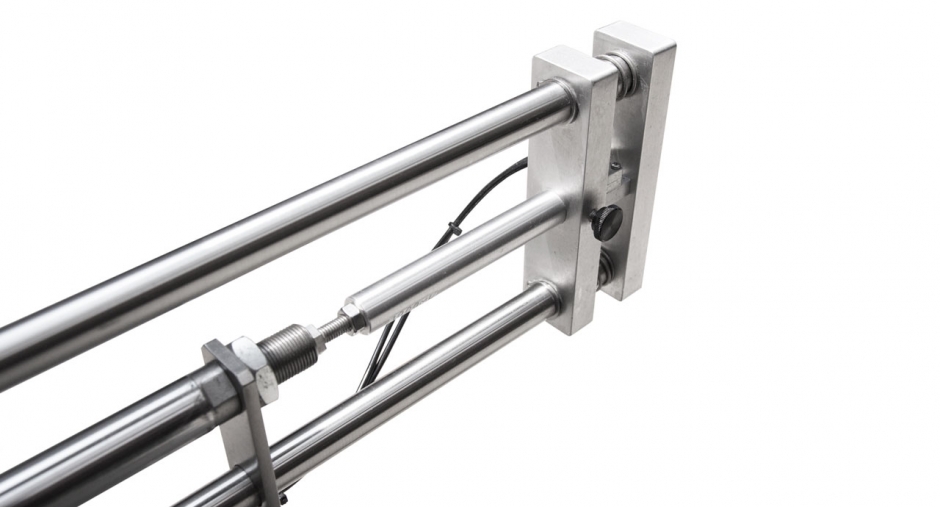

Volume sticks of different length can be change to control the amount dispensed. Clients will provide us information on the desired volume and we will customised the volume sticks in accordance.

Options

250ml model

Volumetric Filler (250ml) - Pneumatic filling machine for liquid, cream, paste or oil product.

click picture for more information

500ml model

Volumetric Filler (500ml) - Pneumatic filling machine for liquid, cream, paste or oil product.

click picture for more information

We have able to cater to

  • No. of filling head – 1 or 2 filling head
  • Hopper capacity (Default is 16 liters)

Suitable for

  • Medium to high viscosity product
  • Paste, gel, cream, syrup, honey, etc

Technical Specifications

Filling volume200 to 2000ml
Filling temperature25 to 100 °C
No. of filling nozzle1 (option to have 2)
Nozzle diameterdependant on client’s request
No. of volume sticksdependant on client’s request
Filling speed4 x 2000ml bottles/min
Hopper capacity16 liters (customisable)
Compressed air6 bar (min), constant supply
Materials for machineStainless steel 304 and 316
Weight40kg
Dimension (L x W x H)1200mm x 350mm x 1200mm
