Tin or Pail Filler (double head)

Introducing –

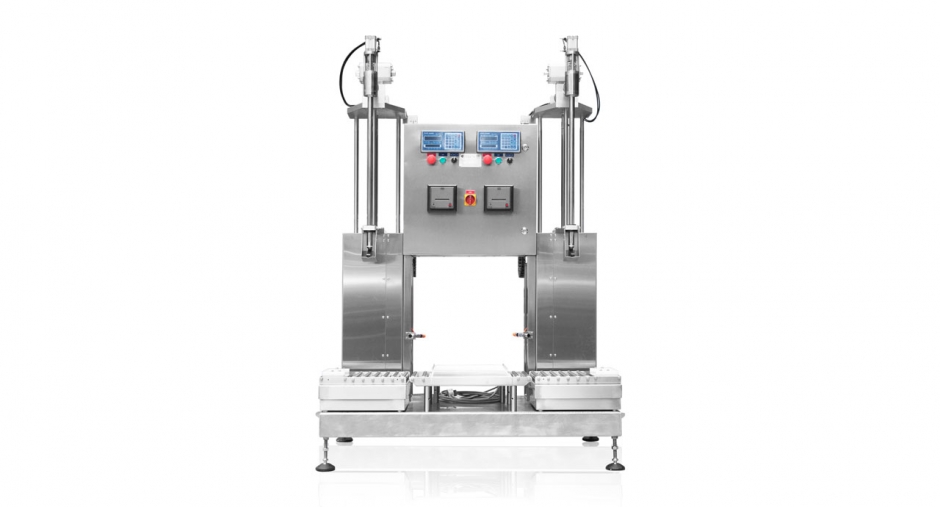

Tin or Pail Filler machine (double head)

The Tin or Pail filler is a filling machine for tin or pail by weight, suitable for petrochemical, oil or liquid products.


The Tin or Pail Filler machine is a filling by weight machine. A weight is set by the users, and the machine will dispense the product until the preset weight is achieved.

A 2 stage filling process ensures the accuracy of the filling is in the range of +/- 1%.

The Tin or Pail Filler also features a dual filling mode, top or bottom to top. Top fill is filling from the top of the tin or pail. While bottom to top filling starts at the bottom of the tin or pail and moves upwards as the level of product rises. The nozzle is always positioned slightly above the product surface to minimise foaming as the product is being dispensed. Bottom to top filling mode is suitable for products that tend to foam.

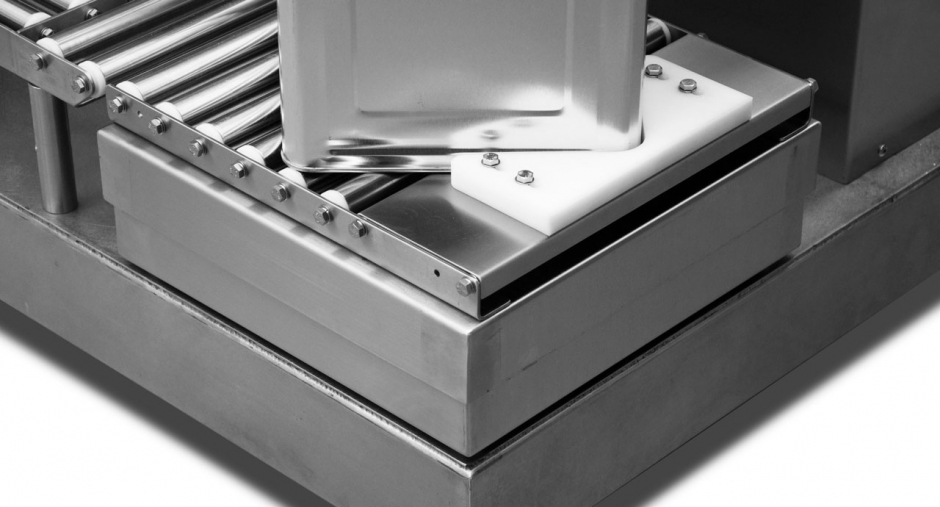

Prior to any filling sequence, the system will zero any weight, so the final weight shown is the net weight of the product inside the tin or pail.

Users can opt to install printers as well to print each filling data for record and QC purposes. Data can also be stored into an SD card or sent remotely to a dashboard for users to view and collect.

How it works

Coming Soon!


Filling by weight

Product is dispensed into tin or pail in 2 stages until the preset weight is achieved, the filling then will stop.

Nozzle option

Additional option for the nozzle is the N2 blanketing. Having this option installed, the nozzle is able to deliver not just the product but N2 as well to add as a protective coat over the product after the filling.

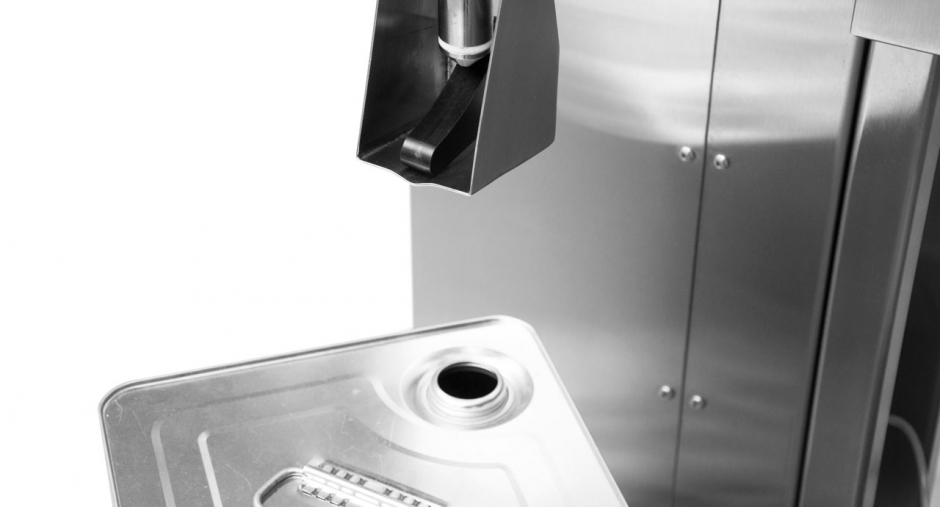

The Tin or Pail filler machine comes with an anti drip attachment to prevent dripping on the container.

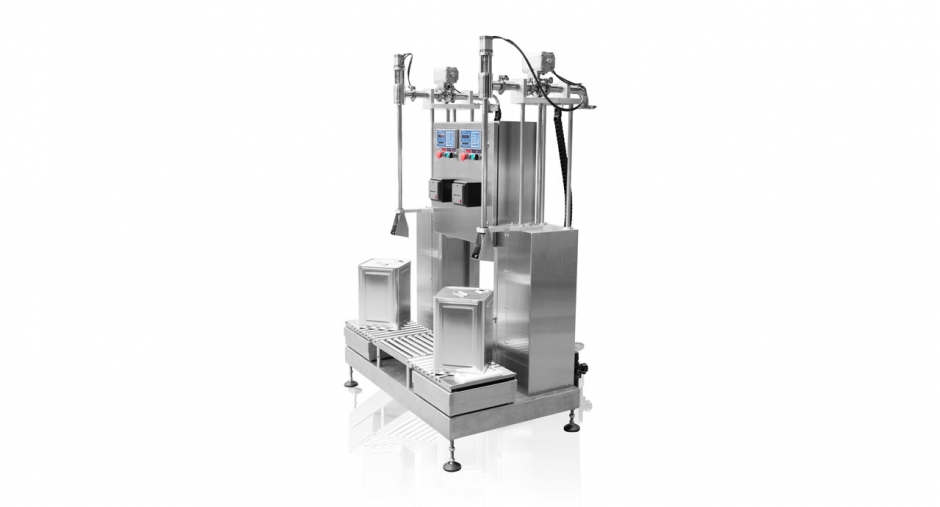

Double head model

Weight Filler - Filling by weight machine for drum, tin or pail.

click picture for more information

Single head model

Weight Filler - Filling by weight machine for drum, tin or pail.

click picture for more information

We have able to cater to

  • N2 blanketing
  • Printer add-on to print out filling data

Suitable for

  • Petrochemical
  • Oil
  • Liquid

Technical Specifications

Filling capacity10 to 30 litres
Filling speed60 to 120 drums per hour
Filling accuracy1 decimal place accuracy
Operating voltageSingle phase, 230V, 50Hz
Power consumption1.5kW
Compress air6 bar (min)
Compress air consumption60 litres
Materials for machineStainless Steel 304 and 316
Dimension (L x W x H)1500mm x 1150mm x 1480mm


Download the PDF file here!
