Our Machines

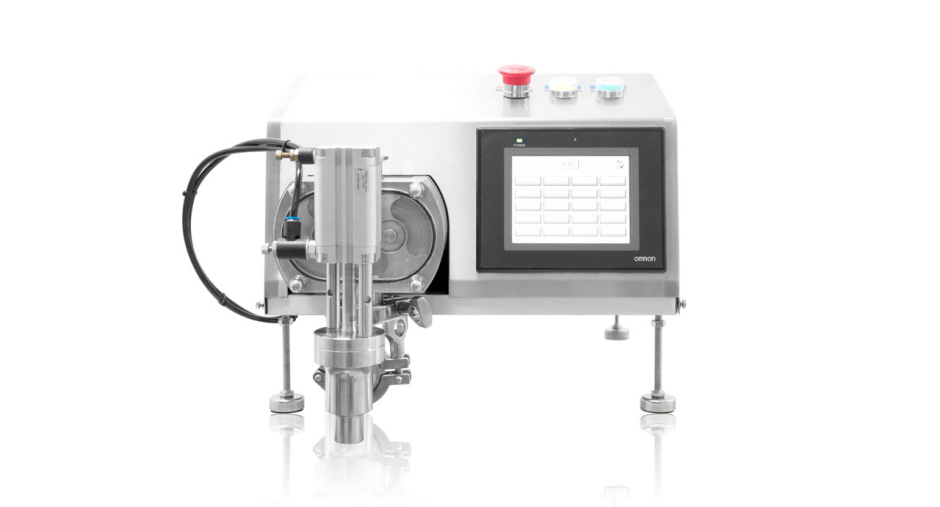

Servo Pump Filler (tabletop)
KSE-SPF2000T

Still filling your sauces, soup or paste by hand?

Try our Servo Pump Filler today.

Servo Pump Filler fills liquid, paste, cream or oil product accurately and fast without any filling limit.

Available for demo

+65 67470269 or enquiry@kse.com.sg
to make your booking today!

Description

Fills your product accurately and fast with no filling range.

We are able to fill a variety of products of different viscosity and weight using just the Servo Pump Filler.

You are able to calibrate and save multiple settings into the machine for repeated use. For example, Sambal Chilli, 500grams in slot A. Black pepper sauce, 350grams in slot B, etc.

The machine does not have a maximum filling limit, allowing you to fill a very large volume range.

How it works

Servo Pump Filler (mobile) - Unlimited and precise filling machine.

No maximum filling range, you can fill any amount you want as long there is enough supply.

Features

Small in size, powerful in feature

The tabletop model is very compact, allowing you to use it anywhere you want so long there is electricity and compressed air.

No maximum filling limit

Using servo technology, our filling machine is able to fill a very large volume range. Giving user multiple options for all their product range.

Filling multiple products with different density and viscosity

As different products have different viscosity and density, it is very hard to achieve the same weight during filling. Our filling machine allows user to quickly calibrate the weight of each individual product and save the setting into the system.

Calibration will take only 2-3 minutes.

Options

Tabletop model

Servo Pump Filler (mobile) - Unlimited and precise filling machine.

click picture for more information

Mobile model

Servo Pump Filler (mobile) - Unlimited and precise filling machine.

click picture for more information

Adaptive solution for you

Client requested that we integrate our Servo Filler into their existing conveyor system. Hence, we came up with the design to have a open/close gate for the trays on one side, while the filler on the other.

The setup can be easily move around to different parts of the conveyor depending on the client’s setup, making it very modular. Which makes cleaning and maintenance is a lot more convenient.

Speak to us today to find out more how we can help you!


We have able to cater to

  • Volume of hopper
  • No. of filling head
  • Nozzle tip design

Suitable for

  • Asian & Western sauces – Ketchup, Chilli, Oyster, Mayonnaise and more
  • Asian & Western soups – Ramen, Bah Kuet Teh, Chicken stock, Cream of spinach and more
  • Pastes – Laksa, Mee Siam, Chilli, Kaya and more

Technical Specifications

Filling volumeunlimited
Filling temperature10 to 100 °C
No. of filling nozzle1
Filling speeddepending on speed setting
Hopper holding capacity16 litres
Operating powerSingle phase, 240V, 50Hz
Compressed air6 bar (min), constant
Materials for machineStainless Steel 304 and 316
Weight75kg
Dimension (L x W x H)310mm x 630mm x 710mm

eBrochure

Download the PDF file here!
Download

Contact us →
