Our Machines

Servo Hose Filler (2H)
KSE-SHF2000-2H

Introducing –

Servo Hose Filler machine

The Servo Hose Filler is a filling machine that dispenses low viscosity liquid or oil via peristaltic pump. Able to store various filling recipes into the system memory for repeated use.

Description

The Serve Hose Filler machine uses a peristaltic pump with servo motor to accurately dispense low viscosity liquid or oil products.

Rate and volume of dispensing can be adjusted with the HMI and saved. Making the filling machine simple and easy to operate.

The hose can be easily removed for cleaning and installed back for operation. During the filling process, only the hose is in contact with the product, making it sanitary. The purpose is to reduce as much human interaction as possible.

Each new product must be calibrated before use. Once the data is sorted out, it can be saved and reused anytime.

How it works

Sanitary and accurate dispensing of low viscosity liquid or oil products.

Features

Accurate and fast filling

Using servo technology, we are able to achieve a very accurate fill. The rotating head creates suction within the hose, drawing product from the supply and fills into the container on the nozzle end.

The filling amount can be easily controlled via the touch screen panel. Every setting can be saved into the system memory, allowing the user to reuse them anytime.

Sanitary filling

Using a peristaltic pump driven by servo motor, we use platinum cured silicone, a medical grade tubing in our Servo Hose Filler to ease our user concern of hygiene and sanitary issues during any filling process.

The hose is the only point of contact during the filling. Hose can be removed after each operation for proper cleaning and maintenance to ensure everything is up to standard.

Options

Single head model

click picture for more information

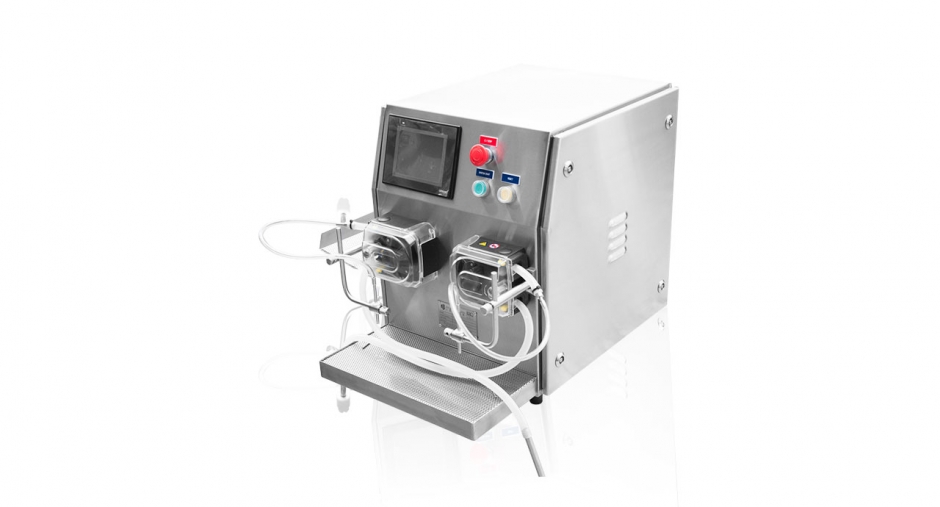

Double head model

Servo Hose Pump - Sanitary, hygiene filling machine with high accuracy.

click picture for more information

We have able to cater to

  • No. of filling head – 1 or 2 filling head
  • Length of tubing

Suitable for

  • Low to medium viscosity liquid, oil or cream
  • Perfume, fragrance oil, hand cream, etc.

Technical Specifications

Filling volumeunlimited
Filling temperature5 to 40 °C
No. of filling nozzle1 or 2 (customisable)
Filling speedadjustable, max 350 rpm
Filling accuracy+/- 0.7ml
Operating powerSingle phase, 240V, 50Hz
Materials for machineStainless Steel 304 and 316
Material for tubePlatinum cured silicon
Weight75kg
Dimension (L x W x H)680mm x 550mm x 550mm (2 head)

eBrochure

Download the PDF file here!
Download
