Our Machines

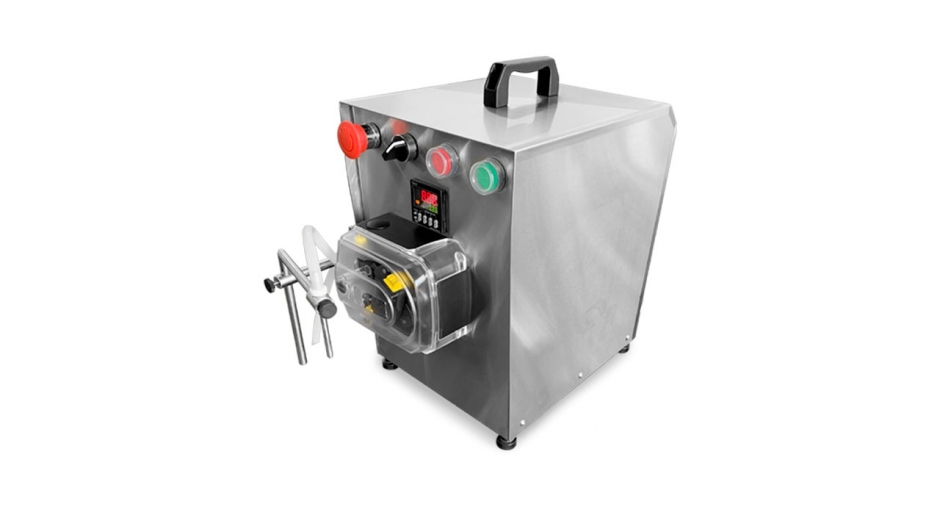

Peristaltic Pump Filler
KSE-PPF1000

Looking for sanitary and hygiene filling machine?

Try our Peristaltic Pump Filler today.

Servo Hose Filler is a precise filling machine for low volume, high accuracy filling. Yet simple an easy to clean and maintain.

Description

Peristaltic pump is very suitable for small volume, high accuracy filling.

Cleanliness and hygiene are the top considerations for this machine. During the entire filling process, the product is never in contact with anything but the platinum cured silicon hose. The hose can be remove separately for cleaning and maintenance.

This particular model works with timing based filling. Simply set the duration and the filling will pump out a certain volume proportional to the time.

How it works

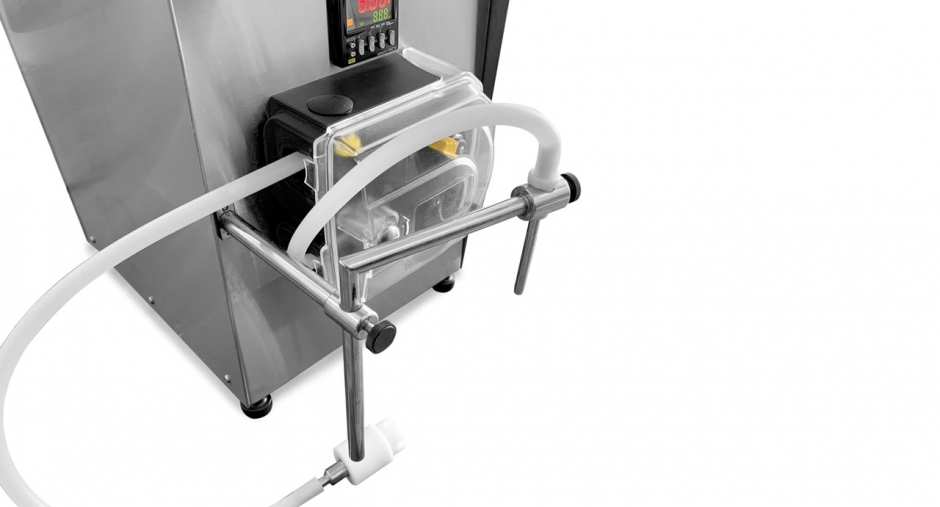

Peristaltic pump in action.

GIF is a sample, not the actual machine.

Features

Highly accurate filling

Peristaltic pumps are commonly use in the medical or processes which requires accurate dosing. Our Peristaltic Pump Filler is able to dose as low as 5ml.

The design is also non-drip by nature, user do not have to worry about messy filling.

Hygiene and sanitary filling

Using peristaltic pump driven by servo technology, we use platinum cured silicon, a medical grade tubing to ease our user concern of hygiene and sanitary issues during any filling process.

The hose is the only point of contact during the filling. Hose can be remove after each operation for proper cleaning and maintenance to ensure everything is up to standard.

Options

Single head model

click picture for more information

Double head model

Servo Hose Pump - Sanitary, hygiene filling machine with high accuracy.

click picture for more information

We have able to cater to

  • Length of tubing

Suitable for

  • Low to medium viscosity liquid or oil
  • Hand sanitiser, Perfume, fragrance oil, etc.

Technical Specifications

Filling volumeadjustable, max 150rpm
Filling temperature5 to 40 °C
No. of filling nozzle1 or 2 (customisable)
Filling speedadjustable, max 350 rpm
Filling accuracy+/- 1-2ml depending on product
Operating powerSingle phase, 240V, 50Hz
Materials for machineStainless Steel 304 and 316
Material for tubePlatinum cured silicon
Weight15kg
Dimension (L x W x H)460mm x 255mm x 420mm
