Automatic Skewer machine (Tray)
KSE-ST28T

Introducing –

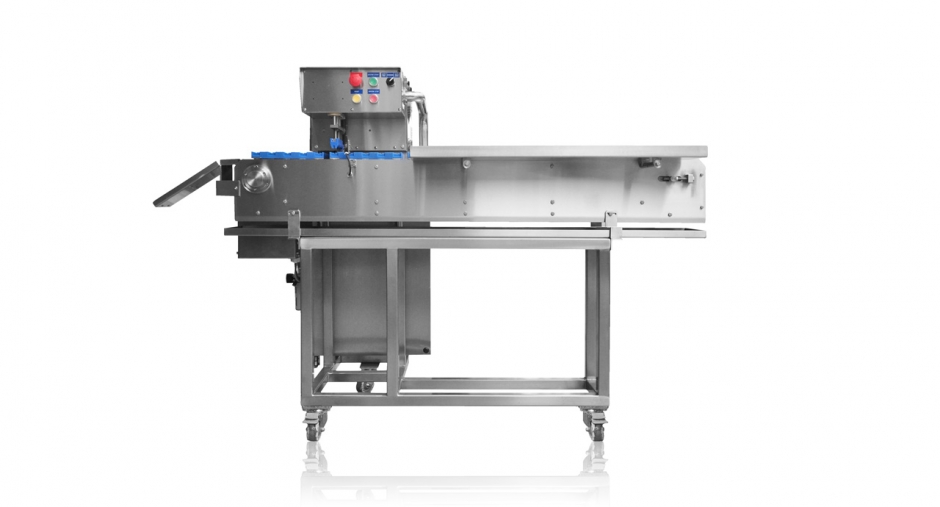

Automatic Skewer machine (Tray)

The Automatic Skewer machine skewers Satay, Yakitori or any on-stick products automatically with speed and precicion.

Description

Designed to reduce time and labour compared to skewering by hand.

Capable of reaching up to 1,100 sticks per hour, with 3 people.

Satay, yakitori or other products are loaded manually onto the blue mould trays. Operator will then load the filled trays onto the conveyor of the Automatic Skewer machine. The sensors on the machine will activate the skewering mechanism if there is product detected on the trays.

After skewering, the finished products will be discharged at the slide together with the tray. Operator can collect the skewered products thereafter. The empty mould trays can be returned back to be filled again.

The Automatic Skewer machine is suitable for satay, yakitori, kushiyaki, hot dog, meatball and more. So long as you can skewer it on a stick, we can customise the mould for it.

By default, the machine can handle 150 or 200mm length bamboo skewers. If you are using something longer, we can customise the machine to do so.

How it works

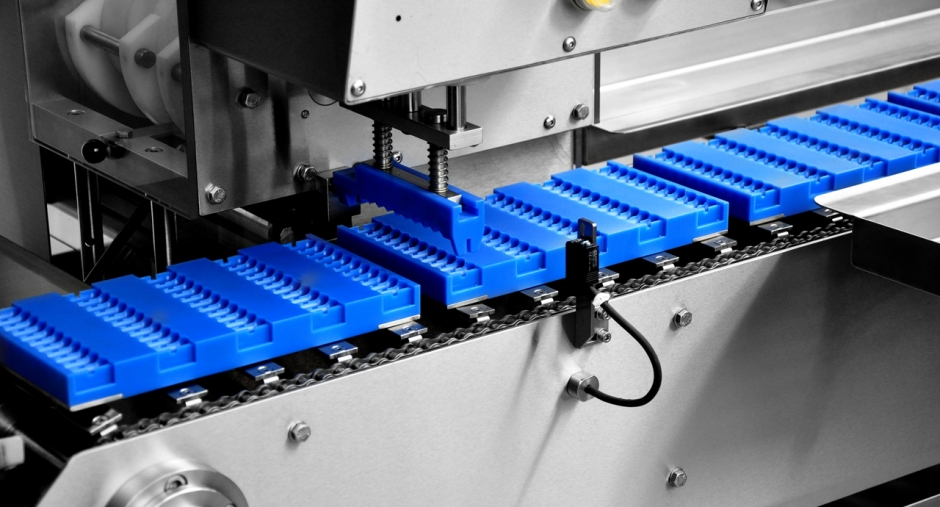

Automatic skewering of satay, yakitori and other on-stick products.

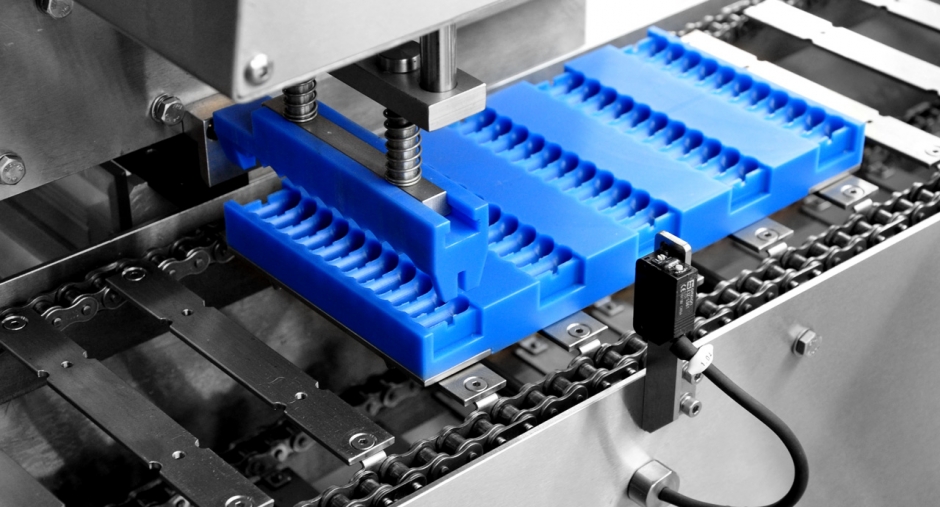

Our unique mould design ensures that your product is skewered in the centre. Allowing your satay or yakitori to be grill with evenness.

Full Video

Check out the full video of our Automatic Skewer machine (tray) in action!

Features

Precise and fast skewering

This tray version of our mould is an alternative design to the single mould design. Allowing users to put satay, yakitori and other products on the tray without feeling the need to catch up to the machine speed.

Our single mould design requires the user to actively place the product onto the moulds while it moves along the conveyor. The speed on the conveyor can be adjusted but it is still moving, some users find it very pressuring to use.

Hence we came up with the tray design in which the product can be place on the mould tray at your own pace and multiple trays at a time. Then only 1 operator is required to insert the trays into the machine for the skewering operation.

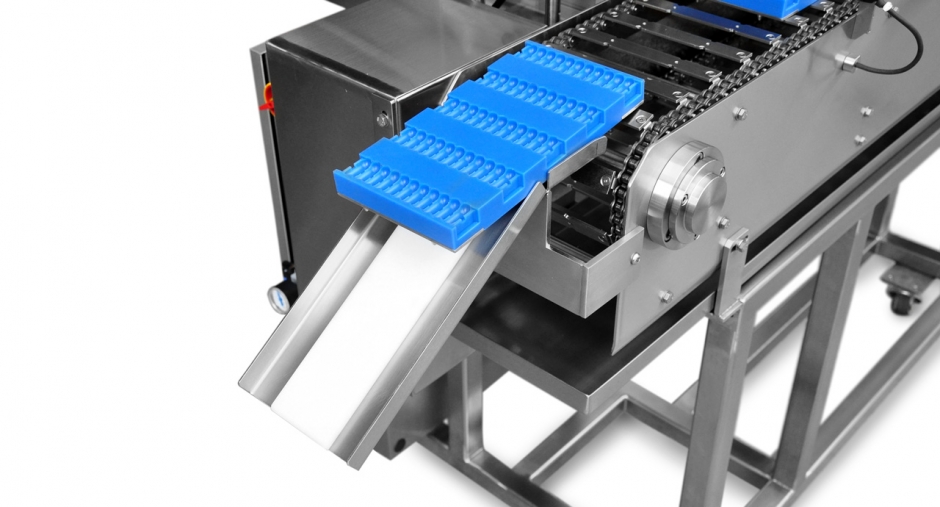

Automatic disengage of mould trays

After the skewering process, the mould tray will automatically disengage from the conveyor, sliding down to a collection tray or container.

Users can opt to have a conveyor to feed out the skewered mould tray as well.

Accommodates 2 different stick length

The Automatic Skewer can accommodate 2 different length of bamboo sticks, 150mm and 200mm. Allowing users to cater to different product requirements.

Feel free to approach us if you are using a different length.

Options

Customised mould

The moulds are customised to fit meat of up to 170mm (length) x 38mm (width) x 10mm (thickness).

Feel free to contact us if you have any requirements for automatic meat skewer machines and we are most happy to assist you!

Hot dog, sausage, etc

Meatball, fishball, etc

Satay, thin meat skewer etc

Kebab, long meat skewer, etc

Yakitori, kushiyaki, etc

Customised mould designs

The moulds showcased are designs previously done up for existing clients to cater to their requirements.

We have mould designs for

  • Satay
  • Yakitori
  • Kebab with capsicum
  • Hot Dog
  • Fish ball

Suitable for

  • Chicken, Pork, Beef, Lamb satay
  • Yakitori variety
  • Kebab
  • Basically anything that needs skewering

Technical Specifications

Skewering speed600 to 1,100 sticks/hour
No. of moulds12 x 5 mould slots/tray (bottom), 1 (top)
Air pressure6 bar (min), constant
Air consumption15 liters/min
Operating voltageSingle phase, 13amps, 230V AC, 50Hz
Power consumption1 kW/hour
Material for mouldsDelrin
Materials for machineStainless Steel 316 (contact with food), Stainless Steel 304 (non-contact with food)
Weight164kg
Dimension (L x W x H)1700mm x 930mm x 1450mm
