• wagon and loader for Multi Function Steam Cooker
  • 300 litres wagon
  • Wagon and Loader 300 litres
  • Wagon and Loader 300 litres
  • Wagon in place sensor

Features

  • Prevents injuries while handling heavy loads
  • Operator can control the loader via the MFSC or on the loader itself
  • Stainless steel 304 construction

Suitable for

  • Processed cheese ingredients
  • Confectionary spread ingredients
  • Ingredients for sauce, soup, paste and more

How it works

The users can load the ingredients in the wagons and have them pushed to the loader. The loader can only take one wagon at a time; simply push the wagon via the entry guide all the way and it will sit snugly. There is a sensor to detect the presence of the wagon, only then will the operator be able to lift the wagon up.

Press and hold the lifting button to bring the wagon towards the Multi Function Steam Cooker to unload all the ingredients into the bowl. When nearing the bowl, the wagon will tilt downwards gradually to facilitate the unloading.

Once completed, the user can press another button to bring the wagon down and remove the empty wagon.

A protective cage around the loader is a must to prevent anyone from entering while the loader is in operation.

Video

Technical Specifications

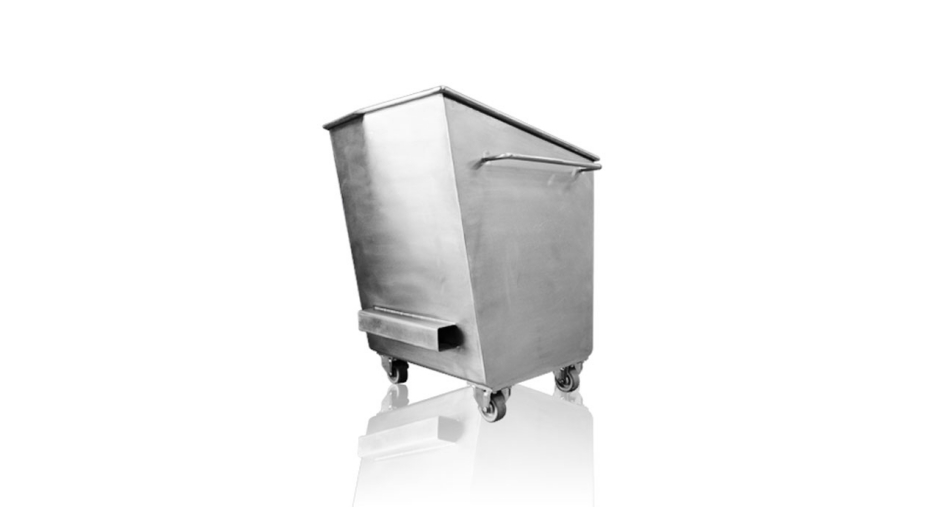

Wagon

Wagon 300 KSE-W300
Capacity 300 litres
Shape Rectangle with beaked front reinforced rim
Base Reinforced base up to 5mm thick
Handle Pushing handle
Side connection Lugs for use with hoist
Wheels 150mm diameter nylon wheels
Material Stainless steel 304
Weight 50 kg
Dimensions (length x width x height in mm) 710 x 680 x 940

Loader

Loader 300 KSE-L300
Tipping height Adjustable, 1500 to 2000 mm
Tipping angle Up to 55° from horizontal
Lifting speed 6 m/min
Safety

Lift prevention system if bin not loaded correctly

Anti-fall chain break mechanism

Lift chain guard

Mounting Bolt down c/w adjustable leveling feet
Column Left hand
Operating voltage 3 phase, 415 V, 50 hz
S.W.L 350kg
Material Stainless steel 304
Weight 315 kg
Dimensions (length x width x height in mm) 770 x 1225 x 3040

eBrochure

eBrochure available via the download button.

Enquiry now

Do you know you can view or test our machines with your products?

Contact us today to find out more!
